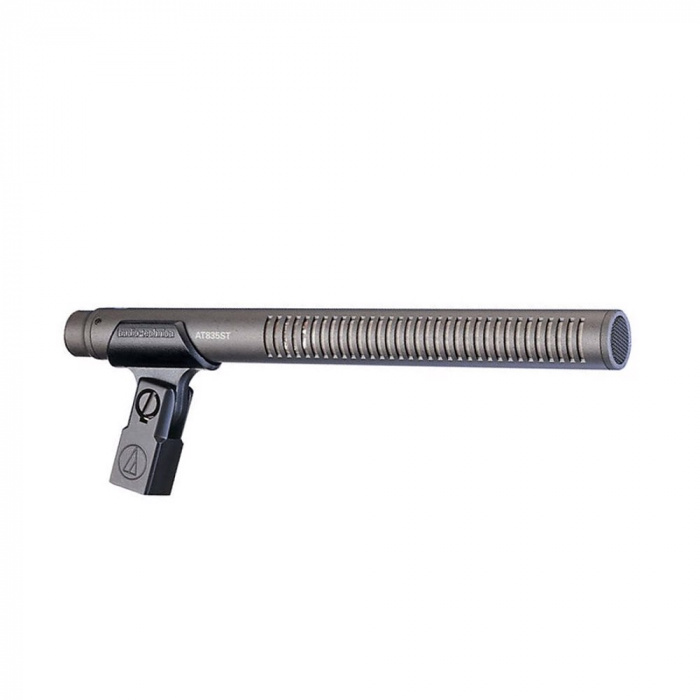

audiotechnica AT 835ST (BP4029) - D00029 | Rycote Global

Rycote 086068 Modular Windshield WS 4 Kit (XLR-5F) for Stereo Microphones from 211mm up to 280mm in Length and 19-34mm in Diameter rycote_086068 / RYC086068. Please Note: Microphone is NOT included.

The Modular Windshield Kit is the professionals' choice when maximum isolation from wind and handling noise is required.

This complete modular system can be configured to allow almost any microphone to be shock-mounted and provided with varying degrees of windshielding. Components may be ordered separately, or as one of a series of kits, which simplify the selection process for many common configurations. A Modular Windshield Kit is comprised of the following three main components: Modular Suspension, Modular Windshield and Windjammer.

Modular Suspension
Our suspensions provides complete isolation against handling noise and cable-borne noises, by supporting the microphone in a cradle arrangement using Lyre suspension webs.

Windshield
The Windshield basket completely surrounds the microphone and its connector, sliding onto the Modular Suspension to provide up to 30dB of wind noise attenuation. This is the first.

The Super-Softie® with our material 3D-Tex™ combines superb wind noise reduction with excellent acoustic transparency.

Excellent noise reduction and weather durability

The Super-Softie® retains the excellent wind noise reduction of a conventional cavity windshield but allies it to a novel aerodynamic shape and surface structure, and to a material - 3D-Tex™ - which combines excellent acoustic transparency with superb attenuation of wind noise. It has no rigid internal structure, so causes virtually no polar pattern distortion and is extremely robust in challenging environments such as news-gathering.

If it becomes rain-soaked it can be squeezed out and shaken dry very quickly; if it becomes coated with dust it can be rinsed quickly without affecting its performance.

The shape & structure of the Super Softie® allow it to reduce wind noise at extreme LF and infrasonic frequencies - where the greatest wind energy lies - more efficiently than previous designs.

The Softie Windshield provides a quick, simple, robust and cost effective windshield for the tough environment of modern day ENG and location recording.

The Softie Windshield is a slip-on open-cell foam, with integral fur cover. The Softie will reduce wind-noise, protect your mic and is the standard world wide in TV. Softie windshields are available in a large range of sizes to fit most popular shotgun microphones.

Both the acoustic foam and synthetic fur are made from materials which are specially designed and manufactured for the purpose, and as a result up to 25 dB of wind-noise reduction without any adverse effect on High-Frequency. In addition the foam is not susceptible to UV or moisture damage, giving this product great longevity.
Advanced materials, adhesives and assembly techniques all combine to make the Softie an extremely tough product that provides excellent wind protection in the harshest of environments.

The Softie Windshield can be purchased either on its own, or as part of a Kit, which includes a Windshield, Lyre shock-mount and Pistol-grip.

Softie Windshields come in two varieties of fur length, classic and short hair. The short haired Softie, known as the Camera-Mounted Softie has closely cropped dark grey synthetic fur, offers lower profile and a more compact design without severely altering the efficiency of the Softie.
It can also be mounted close to the camera lens without causing unwanted shadows.

The Softie Mount, used with the Softie Windshield provides a fast, flexible and cost effective solution for ENG use and forms a robust and practical windshield (70mm in diameter) which can be effectively used without the mount in handhels operation mode.

The Softie Windshield & Shockmount system comprises of the following:

Softie Windshield
The Softie Windshield is a slip on open cell foam, with an integral fitted fur cover. The Softie will reduce wind noise and protect your microphone, and is the standard world-wide in TV. Available in a large range of sizes to fit most popular microphones.

Softie Mount
The mount is a simple but effective. The mount comes in 3 sizes, dependant on the diameter of your microphone. The attachment below the mount is then determined by the intended use of the mount, for example Pistol grip handle, boom pole adaptor or the Multi Mount for use on a camcorders hotshoe.

The main component of the Softie mount is a one piece rubber (actual material: EPDM) diaphragm shockmount. This unit is extremely robust, and has been tested in all environment conditions to ensure it performs.

The Softie Mount comes in three sizes, depending on which microphone being used.
Small Hole 19-20mm diameter
Medium Hole 21-22mm diameter
Large Hole 24-25mm diameter

The mounts are 58mm diameter x 56mm long, and support short to medium length shotgun microphones. Please use the ''Quick Product Finder'' to see what size you need for your mic. The Softie mount will only fit shotgun microphones, which are cylindrical in shape (the same diameter though their whole length). We can not mount microphones that taper, with the Softie mount.

The longest Softie Windshields have an internal bore of 32cm (12-1/2'') - Example:AKG CK68 or Audio Technica AT815b. These are the longest microphones we would recomend using a Softie Mount for, simply because the mount is flexible & cannot support longer mics. For longer mics, we would only recomend a Full Windshield System, and a Modular suspension.
